技术展示

一直以来研发实力是我们赖以生存的核心价值之一。
凭借在触摸显示领域数十年经验，我们的研发团队在客户产品的前期开发，中期设计调试以及后期的售后维护都能很好地满足客户的需求，解决客户碰到的问题。

投射电容式触摸屏液晶显示屏光学贴合

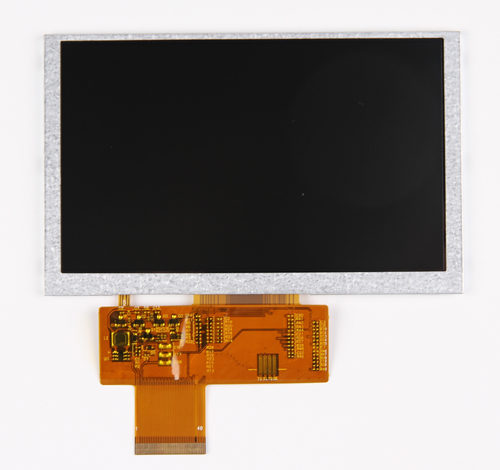

液晶显示屏

产品尺寸涵盖广泛，从1.44寸到15.6寸

工业级显示屏

长时间供货保障

基于原装玻璃，,对显示屏外框，背光，FPC，驱动板，接口等灵活定制服务

特殊光学膜材定制，如Ofilm, 防窥膜，屏蔽膜／玻璃等

带HDMI & VGA 接口的显示屏驱动板

聚触标准显示屏清单

JUTOUCH LCD Catalogue
Size (inch)	Resolution (pixels)	AA Dimension (mm)	Display Mode	Interface	Outline Dimension (W×H×D,mm)	Max Brightness (cd/㎡)
0.96	80×160	10.8×21.7	IPS	SPI/MCU	14.04×27.95×1.45	400
1.22	240×204	30.96×26.316	IPS	SPI/MCU	33.6×33.02×1.6	400
1.44	128×128	25.50×26.50	TN	SPI/MCU	30.70×36.0×2.55	400
1.54	240×240	27.72×27.72	IPS	SPI/MCU	31.2×35.1×1.6	400
1.77	128×160	28.032×35.04	TN	SPI/MCU	34×45.83×2.4	400
2	480×360	40.82×30.62	IPS	RGB/MIPI	46.1×40.96×2.54	450
	480×360	40.82×30.62	IPS	RGB/MIPI	44.25×39.30×2.30	450
	320×240	40.8×30.6	IPS	RGB/MIPI/SPI	46.1×40.96×2.53	400
2.2	240×320	33.84×45.12	TN	SPI/MCU	42.1×56.6×4.2	130
2.3	320×240	46.75×35.06	TN	RGB/MCU/SPI	50.9×45.8×3.6	400
2.4	240×320	36.72×48.96	TN	SPI/RGB/MCU	42.72×60.26×2.2	400
			IPS	SPI/RGB/MCU	40.92×57.45×2.06	500
			IPS	SPI/RGB/MCU	42.72×59.46×2.2	500
2.7	320×240	58.8×33.06	IPS	RGB	67.5×39.1×2.4	220
2.8	240×320	43.20×57.60	TN	SPI/RGB/MCU	50×69.2×2.35	400
			TN	SPI/RGB/MCU	50×69.2×2.5	400
			IPS	SPI/RGB/MCU	50×69.2×2.4	400
2.86	376×960	26.51×67.68	IPS	RGB/MIPI	31.20×76.6×2.11	400
2.9	320×120	70.08×26.28	IPS	RGB/LVDS	78.5×38.65×3.2	1200
2.95	480×854	36.72×65.28	IPS	RGB/MIPI	43.44×75.31×2.65	400
3	240×400	38.88×64.8	TN	SPI/RGB	45.04×77.0×2.6	400
	320×240	65.52×36.84	IPS	RGB	75.31×43.44×2.65	350
	360×640	36.72×65.28	IPS	RGB/MIPI	43.44×75.31×2.65	350
	360×640	36.72×65.28	IPS	RGB/MIPI	44.66×77.8×5.56	1200
3.2	240×320	48.6×64.8	TN	SPI/RGB/MCU	55.04×77.7×2.5	400
			TN	SPI/RGB/MCU	57.54×79.2×3.6	400
			IPS	SPI/RGB/MCU	55.04 ×77.7 ×2.5	400
3.5	320×240	70.08×52.56	TN	SPI/RGB	76.9×63.9×3.3	1100
			IPS	RGB	82.40×65.80×6.8	1000
			IPS	RGB	76.95×63.95×3.3	1000
	320×480	48.96×73.44	TN	SPI/RGB/MIPI/MCU	55.26×84.69×2.4	500
	320×480	48.96×73.44	IPS	SPI/RGB/MIPI/MCU	54.66×82.94×3.0	600
	640×480	70.08×52.56	IPS	RGB/MIPI	76.95×63.95×3.3	700
3.54	800×640	90×72	IPS	RGB	97.7 ×83.89 ×5.6	1200/2000
3.54	800×640	90×72	IPS	RGB	97.7 ×83.89 ×4.1	1200
3.8	480×76	95.04×15	TN	RGB/LVDS	104×27×2.95	1200
3.8	480×100	95.04×19.8	TN	RGB/LVDS	105.5×36×3.0	1200
3.89	306×544	43.146×76.704	IPS VA	LVDS	51.8x98.9x3.0	1000
3.9	480×128	95.04 × 25.34	TN	RGB/LVDS	105.5×37.8×3.0	1200
3.95	480×480	71.856×70.48	IPS	RGB/MIPI	78.5×78.5×2.2	450
3.97	480×800	51.84×86.4	TN	RGB/MIPI/MCU	57.14×96.85×2.45	450
3.97	480×800	51.84×86.4	IPS	RGB/MIPI/MCU	57.54×97.25×2.30	500
4.2	272×480	92.88×52.63	IPS	RGB/LVDS	103.7×60×6	900
	480×272	92.88×52.63		RGB	102.5×67.0×8.4	700
	720×672	77.98×72.78		RGB/MIPI	81.38×79.68×1.96	450
4.3	480×272	95.04×53.86	TN	RGB	103.6×65.58×2.95	1000
			TN	RGB	105.5×67.2×2.95	1000
			IPS	RGB/LVDS(with PCBA board)	105.5×67.2×2.95	1000
			IPS	RGB/LVDS(with PCBA board)	109.4×69.15×3.0	1000
	480×800	56.16×93.6	IPS	RGB	60.34×102.4×1.9	500
	480×800	56.16×93.6	IPS	RGB	62×112×5.4	280
	800×480	95.04×53.86	IPS	RGB/LVDS(with PCBA board)	105.5×67.2×2.95	700
4.46	480×854	55.44×98.637	TN	RGB/MIPI	60×109.1×1.9	500
4.6	800×320	108×43.2	TN	RGB/LVDS(with PCBA board)	119.0×56.54×3	1200
5	480×272	110.88×62.83	TN	RGB/LVDS(with PCBA board)	120.7×75.8×2.95	1000
	640×480	101.57×76.18	TN	RGB/LVDS(with PCBA board)	117.65×88.43×5.8	1000
	800×480	108.0×64.8	TN	RGB/SPI/LVDS(with PCBA board)	120.7×75.8×2.95	1000
				RGB/SPI/LVDS(with PCBA board)	120.7×76.3×2.95	1000
				RGB/SPI	120.26×75.36×2.78	30
				RGB/SPI	120.7 ×75.8 ×4.91	150
			IPS	RGB/LVDS(with PCBA board)	120.7×75.8×2.95	1000
					120.7×75.8×4.8	1500
					121×78.8×6.8	1500
	480×854	61.63×109.65	IPS	RGB/MIPI	65.96×120.60×2.20	500
	480×854	61.63×109.65	IPS	RGB/MIPI	64.90×119.20×1.99	500
	720×1280	62.1×110.4	IPS	MIPI	65.3×119.3×1.65	400
5.5	1080×1920	68.04×120.96	IPS	MIPI	81.04×138.06×4	2000
5.5	720×1280	67.93×120.77	IPS	MIPI	70.65×129.2×1.58	480
5.7	640×480	115.20×86.40	TN	RGB/LVDS	144×104.6×13.1	900
6.2	800×480	137.52×77.232	TN	RGB/LVDS(with PCBA board)	155.2×88.2×5.0	850
6.5	800×320	154.08×75.28	TN	RGB/LVDS(with PCBA board)	165×75.56×3.5	1000
	800×480	143.400×76.704	TN	RGB/LVDS(with PCBA board)	155.2×89.4×5.5	900
	1024×400	154.2×57.28	IPS	LVDS	165×75.56×3.55	400
6.75	800×480	151.8×76.92	TN	RGB	163×91×4.9	1200
6.86	480×1280	60.22×160.59	IPS	MIPI/LVDS	66.7×181×4.4	1000
6.86	480×1280	60.22×160.59	IPS	MIPI/LVDS	66.50×180.8×4.7	500
6.9	1024×224	170.5×37.3	IPS	LVDS	178.8×49.6×4.5	750
7	280×1424	33.6×170.88	IPS	MIPI	38.2×186.62×3.2	900
	280×1424	33.6×170.88	IPS	MIPI	38.26×181.5×3.46	400
	800×480	154.08×85.92	TN	RGB/LVDS(with PCBA board)	164.9×100×2.8	600
					164.9×100×3.5	700
					165×100×5.8	1300
					165×99.6×6.5	2000
				LVDS(with PCBA board)	165×104×6.2	600
		152.4×91.44	TN	RGB/LVDS(with PCBA board)	165×104.44×5.2	600
			IPS	RGB/LVDS	165×104.44×5.2	675
					165 ×106.4 ×4	550
					164.26×103.26×6.3	1500
					165.1 ×104.1 ×6.3	1500
					166.1 ×106 ×7.5	1500
	1024×600	154.21×85.92	TN	LVDS/RGB/MIPI	163.8×97×2.8	500
					164.9×100×3.5	700
					165.0×100×4.8	800
					165.0×100×5.8	1000
					165.0×99.6×6.5	2000
			IPS	LVDS/RGB/MIPI	164.1×97.16×2.6	400
					164.9×100×2.8	600
					164.9×100×3.5	600
					165.0×100×4.8	800
					165.0×100×5.8	1000
					165.0×99.6×6.5	2000
		153.6×90.0	TN	LVDS	165.75×105.39×2.8	500
		153.6×90.0	TN	LVDS	165.75×105.39×3.5	600
	1280×768	152.45×91.47	IPS	LVDS	166.9×108.65×6.25	1000
7.84	400×1280	59.4×190.08	IPS	LVDS/MIPI	67.6×205.78	500
8	800×480	176.64×99.36	TN	RGB/LVDS(with PCBA board)	192.8×116.9×6.4	900
	800×600	162.0×121.5	TN	RGB/LVDS(with PCBA board)	183.0×141.0×3.5	600
					183.0×141.0×5.8	1400
					183.0×141.0×6.3	900
	1024×600	176.64×99.36	TN	LVDS	192.8×116.9×6.4	900
	1024×768	162.00×121.50	IPS	LVDS	174×136×2.45	450
					183.0×141.0×3.5	500
					183.0×141.0×6.3	800
					183.0×140.75×5.8	1500
		165.25×124.70	TN	LVDS	183.0×141.0×3.5	500
	800×1280	107.64×172.224	IPS	MIPI	114.7×184.2×2.5	350
	1280×720	177.024×99.576	IPS	LVDS	192.8×116.9×6.4	1200
	1280×720	177.024×99.576	IPS	LVDS	190×120×6.0	800
	1200×1920	107.64×172.22	IPS	MIPI	119.41 ×184 ×4.5	1300
	1200×1920	107.64×172.22	IPS	MIPI	114.72×184.22 ×2.14	459
8.22	1280×256	204.67×40.93	IPS	LVDS	213.18×54.15×17.18	5000
8.22	1280×256	204.67×40.93	IPS	LVDS	213.88×54.85×11.58	2500
8.4	800×600	170.40×127.80	TN	RGB/LVDS(with PCBA board)	189.75×149.40×9.4	250
8.8	480×1920	54.72×218.88	IPS	MIPI	67.0×237.0×6.4	800
8.8	1280×480	209.28×78.48	IPS	LVDS	229.6×97.3×6.0	350
9	800×480	198×111.696	TN	RGB/LVDS(with PCBA board)	211.1×126.5×5.2	1000
	800×480	198×111.696	TN	RGB/LVDS(with PCBA board)	211.1×126.5×5.8	1000
	1024×600	196.608×114.15	TN	LVDS	210.7×126.5×5.0	800
		196.608×114.15	TN	LVDS	211.1×126.5×5.8	800
		196.608×114.15	IPS	LVDS	211.1×126.5×5.8	800
	1920×384	224.64×44.93	IPS	LVDS	235.8×55.8×16.05	5500
	1280×720	198.72×111.78	IPS	LVDS	211.1×126.5×5.3	1200
	1280×720	198.91×111.89	IPS	MIPI	211.1×126.5×5.8	800
9.2	1280×320	226.56×56.64	IPS	LVDS/MIPI	243.57×69.5×4.6	5500
9.3	1600×320	232.037×46.419	IPS	LVDS	241.16×57.56×8.03	3000
9.3	1600×320	232.037×46.419	IPS	LVDS	241.11×57.19×8.63	5500
9.7	1024×768	196.61×147.46	IPS	LVDS	210.2×164.25×2.8	400
	1024×768	196.61×147.46	IPS	LVDS	210.2×164.2×5.0	600
	768×1024	174.456×207.94	IPS	MIPI	153.82×207.94×2.7	350
10.1	1024×600	222.72×125.28	TN	RGB/LVDS/MIPI	235×143×2.9	350
					235×143×4.5	1000
					235×143×5.0	650
			IPS	RGB/LVDS/MIPI	235×143×4.5	1000
			IPS	RGB/LVDS/MIPI	235×143×5.0	550
	720×1280	125.28×222.72	IPS	MIPI	143×234.95×4.4	400
	1280×720	223.68×125.82	IPS	LVDS	235×143×4.5	400
	1280×720	223.68×125.82	IPS	LVDS	238.6×148.0×6.5	1300
	1280×800	216.96×135.60	IPS	LVDS	229.46×149.1×2.5	400
					229.46×149.1×4.8	1000
					229.80×149 ×6.2	2600
					230.0×150.×6.5	2000
	800×1280	135.36×216.576	IPS	MIPI	143.0×228.6×2.6	400
	1200×1920	135.36×216.58	IPS	MIPI	142.82×228.22×2.25	380
	1920×1200	216.81×135.5	IPS	LVDS	228.5×149×4.55	1200
	1920×1200	216.81×135.5	IPS	LVDS	229.46×149.01×2.5	380
10.2	800×480	222×132.48	TN	RGB	237.8×156×8.4	1800
10.25	1280×480	243.84×91.44	IPS	LVDS	265.2×109.8×7	1200
	1920×720	243.65×91.37	IPS	LVDS	254.71×105.88×6.03	1200
					254.71×107.07×6.03	1200
					261×110.5×7.65	1200
					265.2×109.8×7	1200
10.4	1024×768	211.2×158.4	IPS	LVDS	236×174.3×5.75	600
	1024×768	210.43×150	IPS	LVDS	238.6×175.8×6.5	1200
	800×600	211.2×158.4	TN	RGB	228.5×175.5×6.15	250
11.3	440x1920	252.86×57.95	IPS	MIPI	266.44 ×64.98 ×4.6	500
11.6	1920×1080	256.32×144.18	IPS	EDP	267.9×168.2×2.8	300
11.6	1920×1080	256.32×144.18	IPS	EDP	267.72×164.42×6.1	1000
12.1	1024×768	245.76×184.32	IPS	LVDS	260.5×204×8.6	1000
12.3	1920×720	292.03×109.51	IPS	LVDS	311.4×130.8×19.32	1000
					312.6×132.2×13.3	1000
					312.6×132.2×7.8	1000
					302 ×125.4 ×6.2	850
		292.18×109.512	IPS	LVDS	312.6×132.2×7.8	1000
		292.032×109.512	IPS	LVDS	302.63×123.60×6.55	850
					299×120×6.51	1200
					301.89×124.87×7.45	1200
					312.6 ×132.2×7.8	1000
13.3	1920×1080	293.76×165.24	IPS	EDP	305.2×178.1×2.6	300
	1920×1080	293.76×165.24	IPS	EDP	307.6×183.05×5.5	800
	3840×2160	293.76×165.24	IPS	EDP	302.46×188.17×6.36	1500
14	1920×1080	308.16×173.34	IPS	EDP	318.76×188.94×5.73	1050
14.9	1280×239	374.78×69	IPS	RGB/MIPI	421×101×26.8	420
15.6	1920×1080	344.16×193.59	IPS	EDP	359.5×223.75×3.3	300
15.6	1920×1080	344.16×193.59	IPS	EDP	360×222.23×6.4	1000
