Jutouch New touch IC controller board

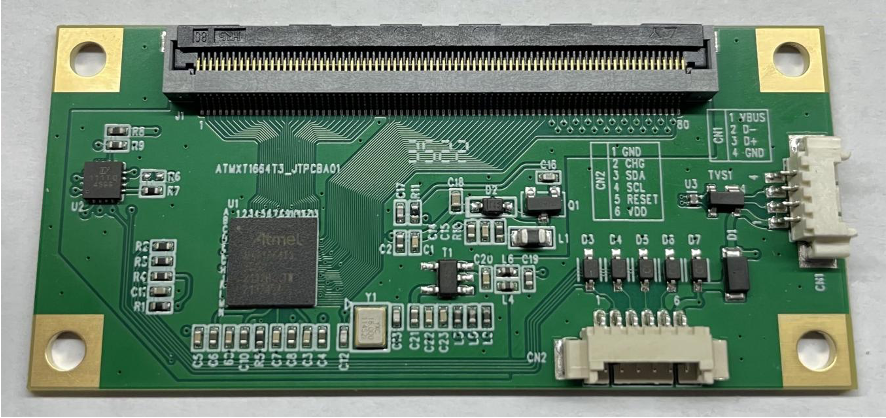

In order to meet the diversified needs of the market, Jutouch recently developed a new touch controller board ATMXT1664T3_JTPCBA01 with Microchip IC controller. ATMXT1664T3_JTPCBA01 is a projected capacitive (PCAP) touch screen controller that powered by Microchip's high performance MCU ATMXT1664T3. By integrating the advantages of self and mutual capacitance sensing technology, built-in high driving voltage transceiver and a powerful MCU, this controller incorporate most desired features to boost the noise immunity, and support high demand applications in most categories.
Features
• USB and I2C interface
• Support advanced water resistance
• Support glove
• Support passive stylus
• Support DITO, G/F, G/F/F, G/G, and Metal Mesh sensor
• Comprehensive driver support
• maXTouch studio tool support
• RoHS compliant
OS Support Matrix
OS | Version | Interfaces |
Windows | Windows 10 / Windows 8 / Windows 7 / Windows 2000 / Windows XP (I2C interface: need additional system configuration) | USB/I2C |
Win CE | Win Embedded Compact 2013 / Win Embedded Compact 7 | USB |
Linux | CentOS, Debian, Fedora, Gentoo, Mandrake (Mandriva), Meego, Red Hat, Slackware, SuSE (OpenSuSE), Ubuntu (Xubuntu) and Yellow Dog etc. Support most 32/64 bit Linux distribution versions, including Kernel 2.6.x / 3.x.x / 4.x.x | USB/I2C |
Android | Android 2.3 to latest version | USB / I2C |
Technical Specifications
Circuit Board Dimension | 65mm x 30mm x 5.0mm |
Channels of Panel | Max. TX26 RX46 |
Input Voltage | 5V(USB), 3.3V(I2C) |
Operating Temperature | -40 to 85℃ |
Storage Temperature | -40 to 90℃ |
Relative Humidity | 90% at 60 ℃, RH Non-condensing |
Linearity* | Line drawing accuracy : 1pt +/- 1mm offset /10mm Touch (point) accuracy : 1pt +/- 1mm |
Interface | USB HID interface I2C: up to 400KHz, Voltage Level 3.3V. |
Resolution | 16384 x 16384 resolution |
Power consumption | Active Mode: < 45mA, depends on firmware Deep Sleep : < 360uA |
Report rate(points/sec)* | Up to 250 Hz reporting rate for one finger (subject to configuration) |
Response time | Average latency < 25 ms Initial touch latency <10 ms for first touch from idle (subject to configuration) |
